Omnitronic UHF-201 Wireless mic system

Receiver unit and hand-held microphone with UHF PLL technology
Operation in the low-interference UHF band
Parallel operation of up to 4 sets is possible without any interference
Volume control

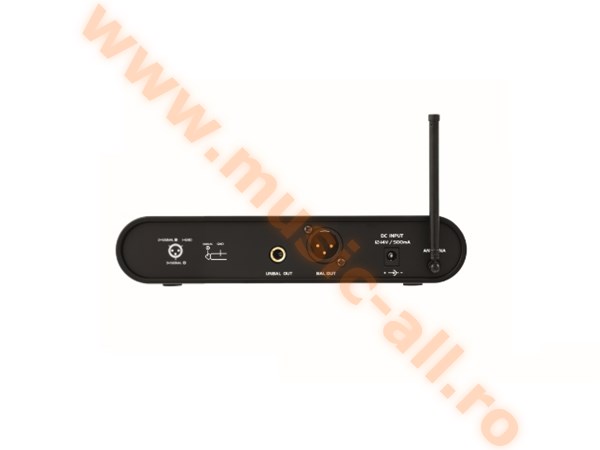

XLR and 6.3 mm output
Jack cable included
LEDs for power, carrier and audio signal
Microphone with mute switch and color indication
Matching pocket transmitter can be ordered separately
License-free and approved in the EU

System: Non-Diversity
Carrier frequency: 863.010 MHz
Coverage: 50 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
Frequency response: 40 Hz - 18 kHz
S/N ratio: >105 dB
Selectivity: >80 dB
T.H.D.: <0.5 % at 1 kHz
Audio outputs: 400 mV, 2.2 kohms (XLR, bal.)
200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Power supply
Receiver: 100-240 V AC, 50/60 Hz ~ via supplied power unit
Power consumption: 10 W
Microphone: 2 x 1.5 V battery, type AA
Battery life: approx. 10 hours
Dimensions, weight:
Receiver: 155 x 210 x 45 mm (WxDxH), 1 kg
Microphone: 50 x 265 mm (DxL), 280 g
Shipping weight: 1.10 kg
